2.5(in) DVR Dash Camera

Product Details

2.5(in) DVR Dash Camera


Product Description

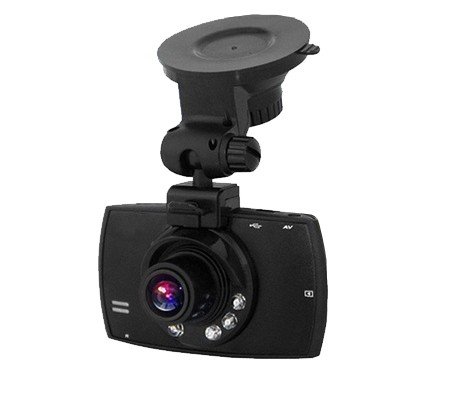

Dash Camera ( Dash Cam )

This neat little dashboard camera measures just 100*62*23mm, with a 2.5" rotational TFT screen and windscreen suction cup.
Powered with 12V/24V Car Charger.
Supports SD/MMC card up to 32GB (not Included)

With resolutions of 1280x720* [HD], 848x480* [D1], 640x480 * = software interpolated
Frame rate is set for each resolution
IR night function can be set to Auto or OFF
Power off delay function
Date and time is set through the menu

Mode : Video Recorder / Camera
Video format : AVI
Power input : DC5V
Power Source : 12V/24V Car Charger
Interface : USB2.0
Light Frequency Set : 50HZ/60HZ
Support Language : English /Japanese/Russian/Chinese/Germen/Italian/ Spanish/Portuguese
Support SD/MMC card up to 32GB (not Included)
Recording resolution : WXGA: 1080 x 960 Pixels WVGA: 720 x 480 Pixels VGA: 640 x 480 Pixels
Image sensor : 1/4 color CMOS HD Sensor
LED : 6 pieces
Viewing angle : 90 degrees
Power : DC 5V
Display : 2.4 inches TFT Colorful LCD
Interface : USB 2.0
Video Format : AVI
Still Image Storage Format :       JPEG

Size : 100*62*23 mm
Weight (only the DVR) : 120g

Package includes :

1 * Car DVR
1 * USB Cable
1 * Li-ion Battery (will require charging)
1 * Car Charger
1 * Holder
1 * User Manual


Memory card full message

If this occurs, it means you have the recording time set to "off".
The camera will stop recording when the memory card is full, and will not overwrite the card.
video time is 1/3/5/10 and off

Formatting the SD card

Easily done through the menu, but make sure you cycle the camera with the on/off button at least once before hooking it up to the cars power supply.
Failure to do so will see the unit appear to record and then hang with a white screen.

Mounting the camera :

Fix near the rear view mirror for maximum road coverage.
The rotational and foldabale LCD screen is down in the picture, but would normally be folded away when driving to avoid obstructing vision.

Additional Information:

The internal battery is for short playback and retention of system settings only.
Recording must be run from 12/24v power adaptor (supplied).

Memory card not included.


Instruction Manual Download.

Product Code: EC29
