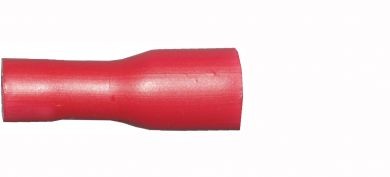

Red Female Spade 4.8mm Fully Insulated (crimps terminals)

£4.15

Product Description


Red Female Spade 4.8mm Fully Insulated

Used primarily for car radio/alarm installations

Important Note: This terminal is 4.8mm, and will not fit the males WT58, WT59 (which are 6.3mm)

All terminals conform to BS4579 and BS4G178. Anti-vibration copper inserts are fitted to all Spades, Piggybacks, Tabs, Bullets and Receptacles.

Materials

Conductor: Brass
Sleeve: Copper tubular
Insulation: Vinyl
Plating: Tin

Operating temperature: -10°C to +75°C
Max. voltage rating: 300V
Max. current rating: Red - 10A, Blue - 15A, Yellow - 24A
Flared barrel for easy wire insertion
Low insertion force and easy crimping whilst ensuring secure termination

Technical Spec

Packed in 100's






Product Code: WT9
