Panel Mounted Battery Isolator Switch 200A

Product Details

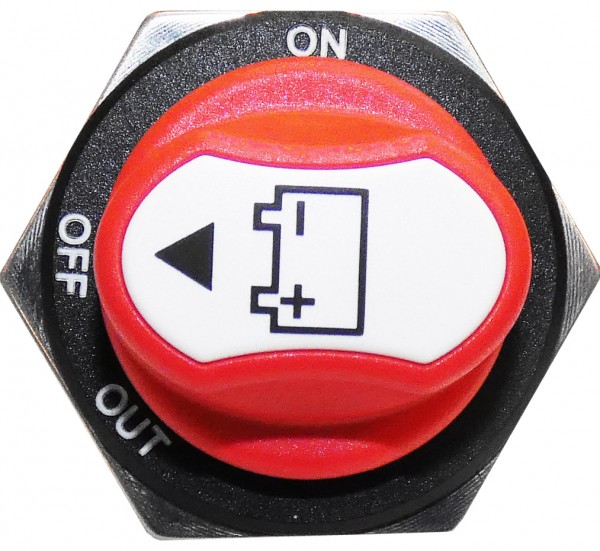

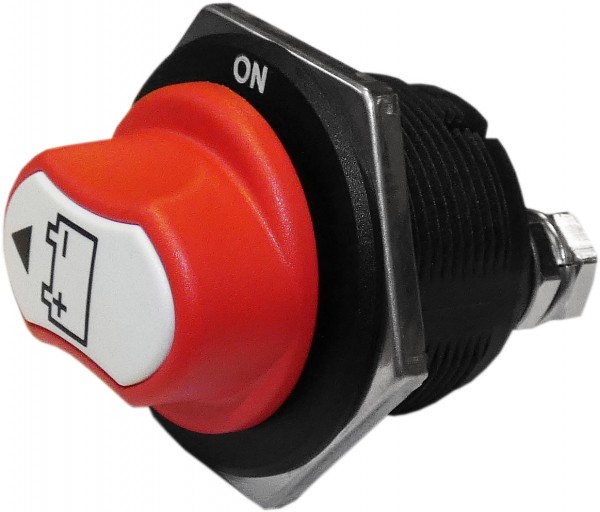

Panel Mounted Battery Isolator Switch 200A

10.55

Product Description

Continuous Rating – 200 Amps 32v DC max
Intermittent Rating – 300 Amps
Cranking Rating – 1000 Amps 5 seconds

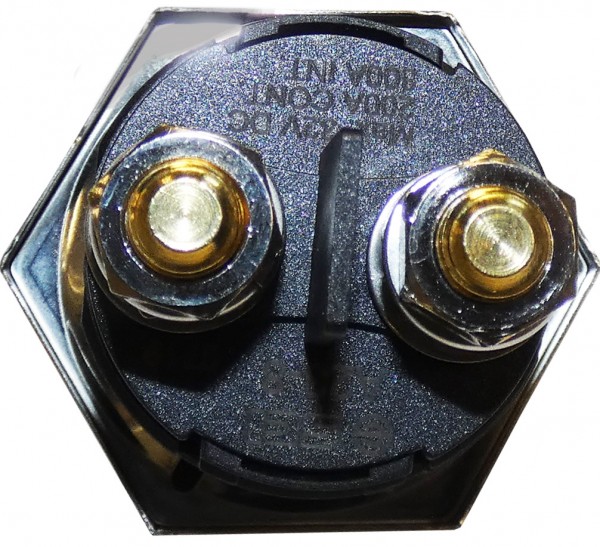

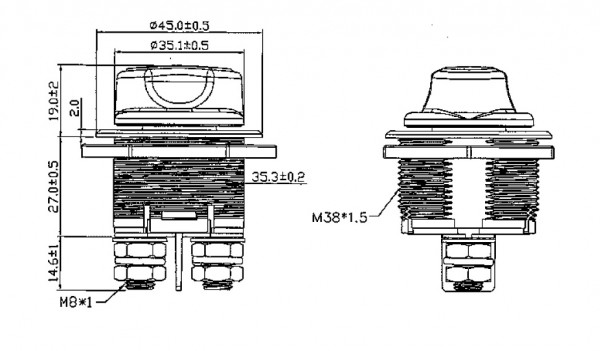

Nut: Nickel Plated Brass M38
Bolt: brass. (M8*P1.0)
Stud length: 14.6mm
Removable Acuator

Material:
Nylon housing with glass fibre (UL frame: 94v-2), black colour, with hot white stamping
Actuator: PBT (UL frame: 94v-0), red colour
Bottom: PBT (UL frame 94v-0), black colour
Name plate: ABS, white colour with black hot stamping

Product Code: SH45
